STANDARD
ANSI/TIA-568.2-D Category 5E
ISO/IEC 11801: 2017 Class D
EN 50173-1 Category SE
ICEA 5-90-661 Category SE
EN 50288-3-1,NEMA WC 63.1
UL444
ROHS Compliant
APPLICATION
2.5G BASE-T (IEEE 802.3bz)
10/100/1000 BASE-T (IEEE 802.3/u/ab)
IEEE 802.3af/at (PoE/PoE+)
52/155/622 Mbps and 1.2 Gbps ATM
4/16 Mbps Token Ring
TP-PMD, TPDDI, ISDN, CDDI, VOIP
HD BaseT 2.0 standard, Baseband, Broadband
Digital & Analog for data, video and audio application
MECHANICAL PROPERTIES
Minimum Bending Radius
4 X Cable Diameter
Tensile Strength

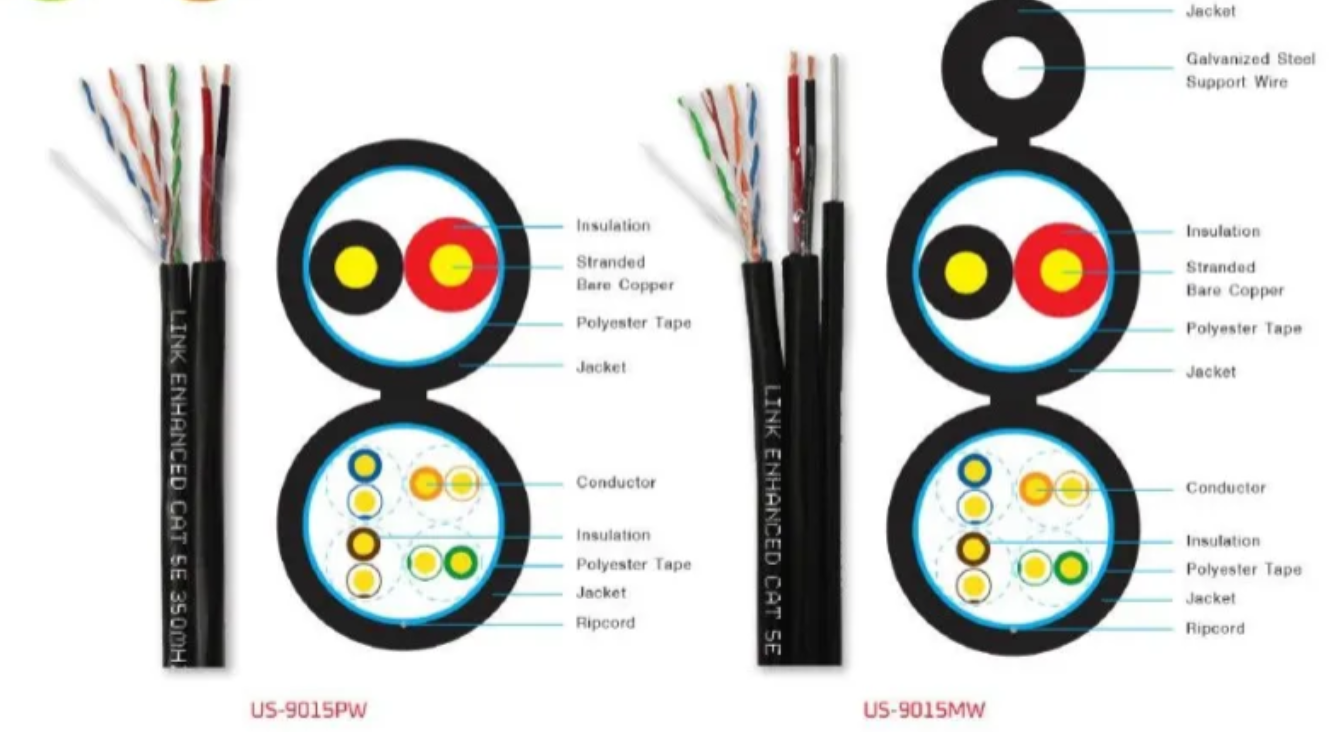

9.7 MPa (1400 PSI) for US-9015PW
Installation/Operating temperature
16.5 MPa (2400 PSI) for US-9015MW
Storage Temperature
-40°C to 75°C
-40°C to 80°C
